Introducing the

Samsung Wind-Free™Comfort

Advanced comfort. No cold drafts.

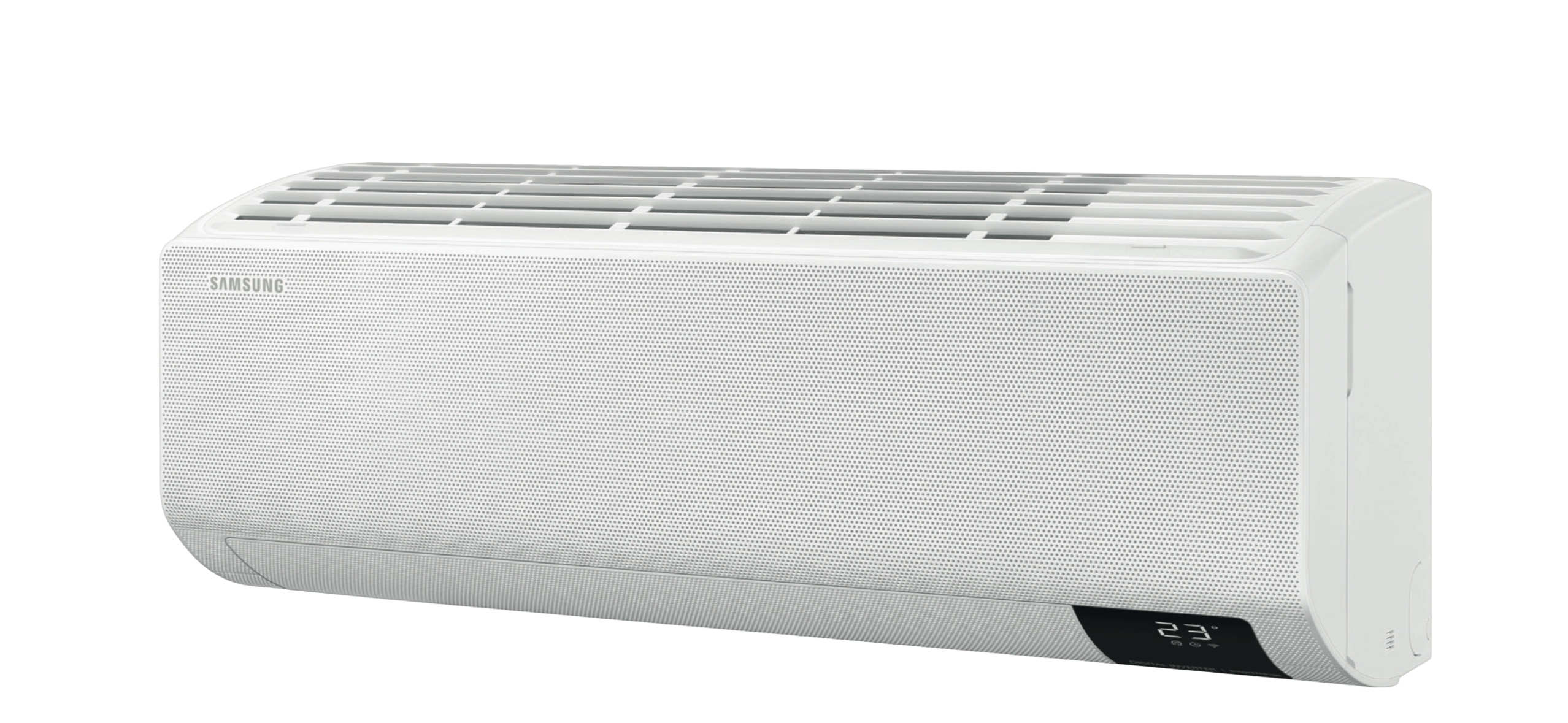

Samsung WindFree Comfort wall-mounted air conditioning unit

The Samsung Wind-Free™ range delivers intelligent, even cooling that keeps your home comfortable throughout the day and night.

Smart controls help tailor operation to your preferences and maintain comfortable room conditions.

Wind-Free™ Cooling

Gentle, even cooling without unpleasant cold drafts.

Smart Operation

Intelligent comfort control tailored to your routine.

Energy Efficiency

Efficient everyday performance with less wasted energy.

How Wind-Free™ Works

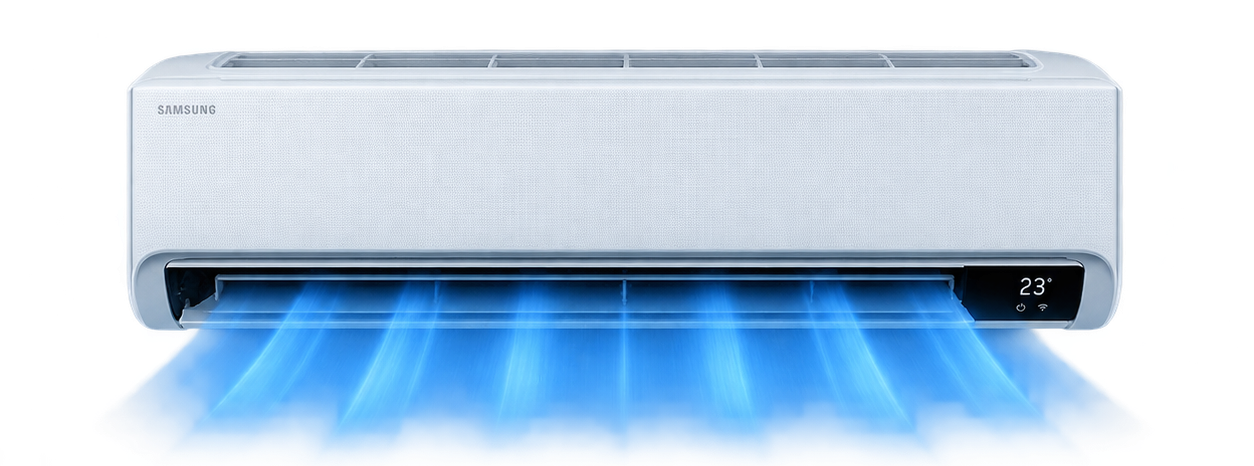

Step 1

Samsung WindFree operation step 1

The front panel opens and Fast Cooling mode cools the room quickly from corner to corner.

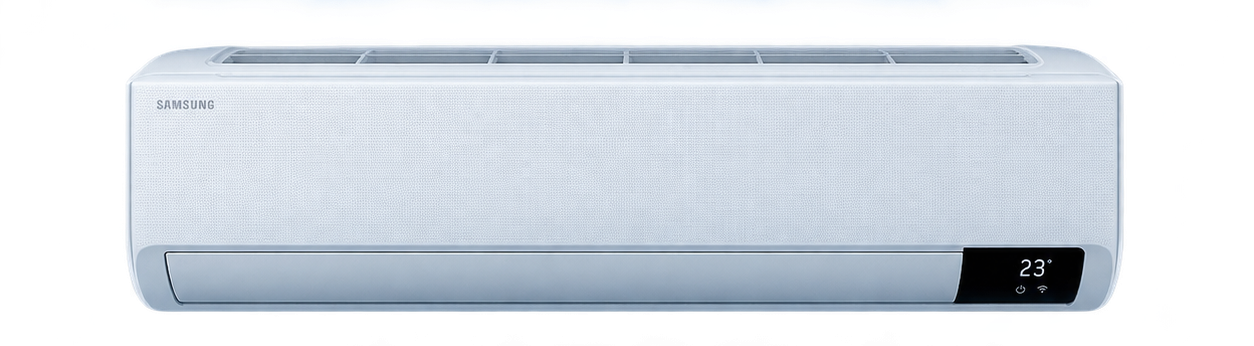

Step 2

Samsung WindFree operation step 2

Once the set temperature is reached in Fast Cooling mode, the front panel closes.

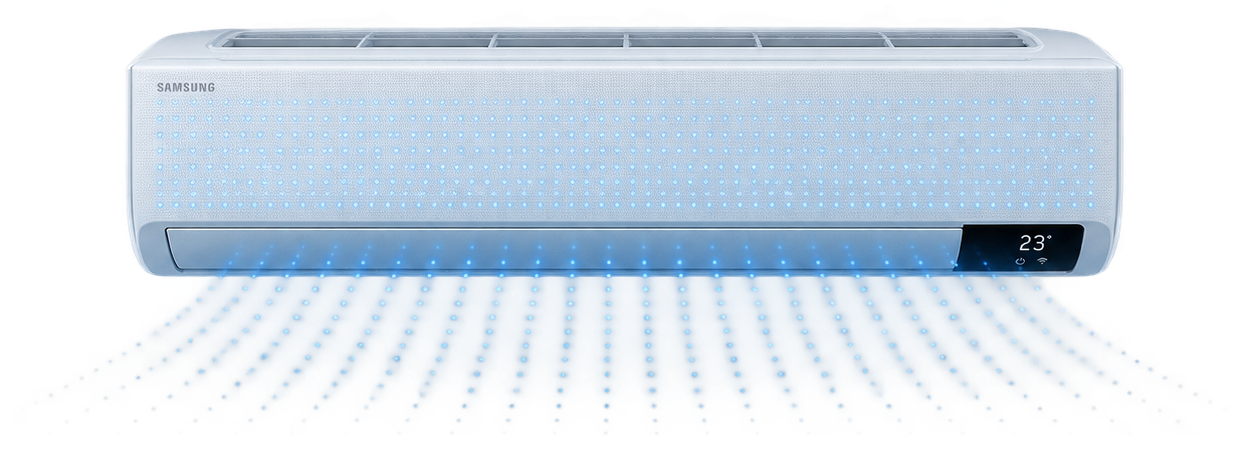

Step 3

Samsung WindFree operation step 3

Wind-Free™ mode distributes cool, fresh air evenly through thousands of micro-holes.

Samsung WindFree™ Comfort

Manufacturer performance data

Technical specifications and performance figures

Technical figures reproduced from the Samsung Wind-Free™ Comfort product leaflet supplied for this product page.

Performance data2.5 kW3.5 kW5.0 kW6.5 kW
Indoor unitAR09TXFCAWKNEUAR12TXFCAWKNEUAR18TXFCAWKNEUAR24TXFCAWKNEU
Outdoor unitAR09TXFCAWKXEUAR12TXFCAWKXEUAR18TXFCAWKXEUAR24TXFCAWKXEU
Cooling capacity nominal2.5 kW3.5 kW5.0 kW6.5 kW
Cooling range0.9-3.4 kW0.9-4.0 kW1.6-6.7 kW1.4-7.6 kW
Heating at +7°C3.2 kW3.5 kW6.0 kW7.4 kW
Heating range0.9-4.5 kW0.9-5.0 kW1.3-8.0 kW1.2-9.4 kW
Heating at -5°C2.74 kW3.09 kW4.84 kW6.00 kW
Heating at -10°C2.48 kW2.87 kW4.57 kW5.55 kW
Heating at -15°C2.29 kW2.58 kW4.58 kW5.66 kW
Cooling SEER / class6.7 / A++6.5 / A++6.8 / A++6.4 / A++
Cooling power consumption131 kWh/a188 kWh/a257 kWh/a355 kWh/a
Pdesignc2.5 kW3.5 kW5.0 kW6.5 kW
EER3.572.873.603.33
Heating SCOP / class4.0 / A+4.0 / A+3.8 / A3.8 / A
Heating power consumption735 kWh/a770 kWh/a1,400 kWh/a1,511 kWh/a
Pdesignh average2.1 kW2.2 kW3.8 kW4.1 kW
COP3.813.723.513.15
Moisture removal1.0 l/h1.5 l/h2.0 l/h2.5 l/h
Indoor max airflow cooling10.3 m³/min10.7 m³/min16.6 m³/min17.3 m³/min
Outdoor max airflow cooling28.0 m³/min28.0 m³/min50.0 m³/min50.0 m³/min
Indoor sound power cooling54 dB(A)56 dB(A)58 dB(A)62 dB(A)
Outdoor sound power cooling63 dB(A)64 dB(A)65 dB(A)68 dB(A)
Indoor sound pressure high/silent37/19 dB(A)38/19 dB(A)41/25 dB(A)45/26 dB(A)
Outdoor sound pressure high46 dB(A)47 dB(A)51 dB(A)54 dB(A)
Cooling operating range-10~46°C-10~46°C-10~46°C-10~46°C
Heating operating range-15~24°C-15~24°C-15~24°C-15~24°C
Power source1Φ 220-240V 50Hz1Φ 220-240V 50Hz1Φ 220-240V 50Hz1Φ 220-240V 50Hz
Compressor typeBLDC RotaryBLDC RotaryBLDC RotaryBLDC Rotary
Cooling input700 W1,200 W1,390 W1,950 W
Heating input840 W940 W1,710 W2,350 W
Cooling current3.4 A4.5 A6.4 A8.8 A
Heating current3.7 A5.1 A7.8 A10.5 A
Indoor dimensions820×299×215 mm820×299×215 mm1,055×299×215 mm1,055×299×215 mm
Outdoor dimensions660×475×242 mm660×475×242 mm880×638×310 mm880×638×310 mm
Indoor weight8.9 kg8.9 kg11.5 kg11.6 kg
Outdoor weight23.0 kg23.0 kg39.7 kg43.2 kg
RefrigerantR32R32R32R32
Factory charge for 5m0.70 kg0.70 kg1.30 kg1.15 kg
CO₂ equivalent0.47 tCO₂e0.47 tCO₂e0.88 tCO₂e0.78 tCO₂e
Additional refrigerant15 g/m15 g/m15 g/m15 g/m
Liquid pipe6.35 mm (1/4)6.35 mm (1/4)6.35 mm (1/4)6.35 mm (1/4)
Gas pipe9.52 mm (3/8)9.52 mm (3/8)12.70 mm (1/2)15.88 mm (5/8)
Pipe length min/max3/15 m3/15 m3/30 m3/30 m
Max pipe height8 m8 m15 m15 m
Drain pipeø16.3, 550 mmø16.3, 550 mmø16.3, 550 mmø16.3, 550 mm

Manufacturer specifications can change without notice. Final equipment selection and current specifications should be confirmed at quotation stage.
